      PowerLeader ZiQiang AI Inference Server PR210KI

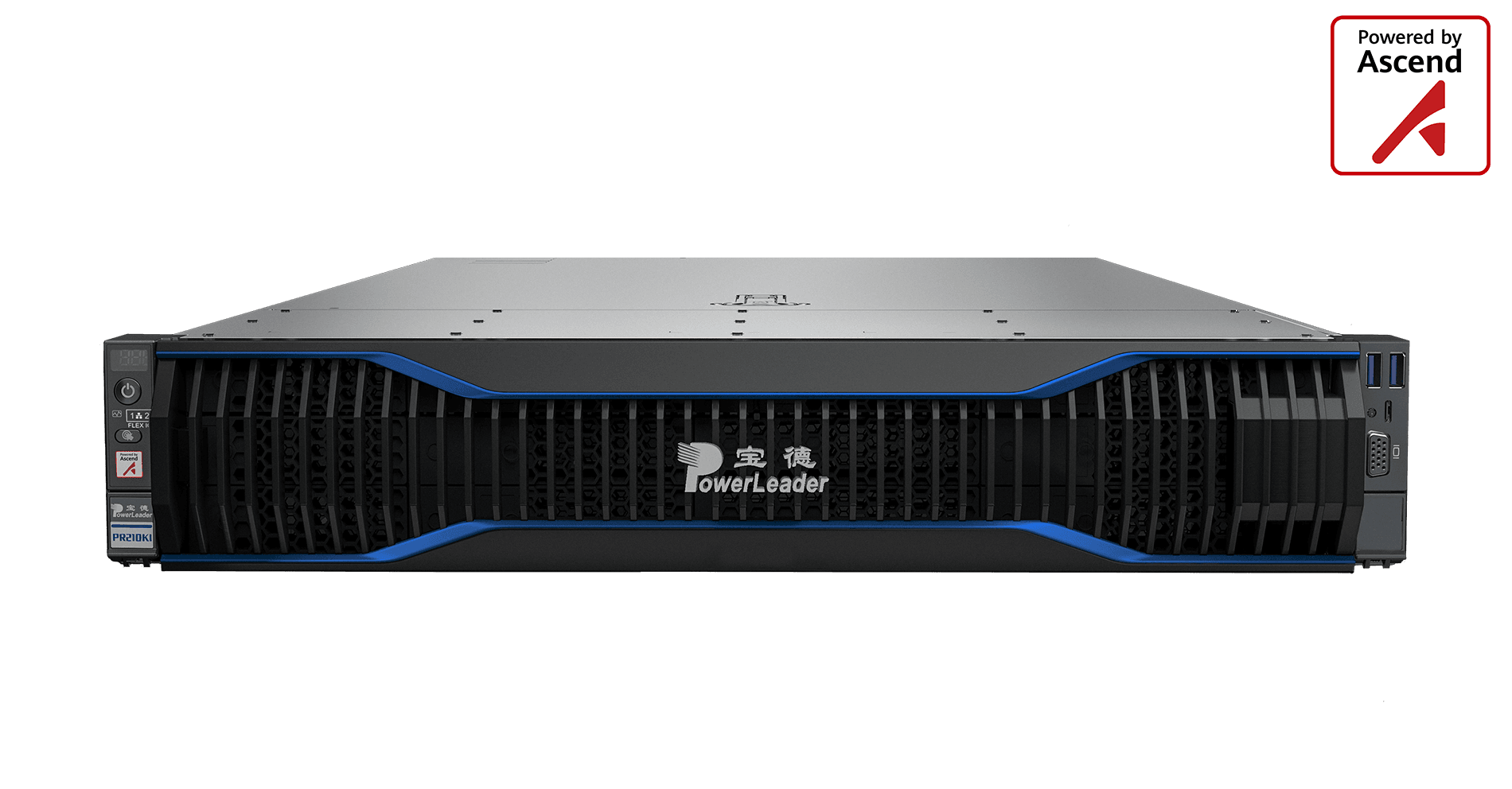

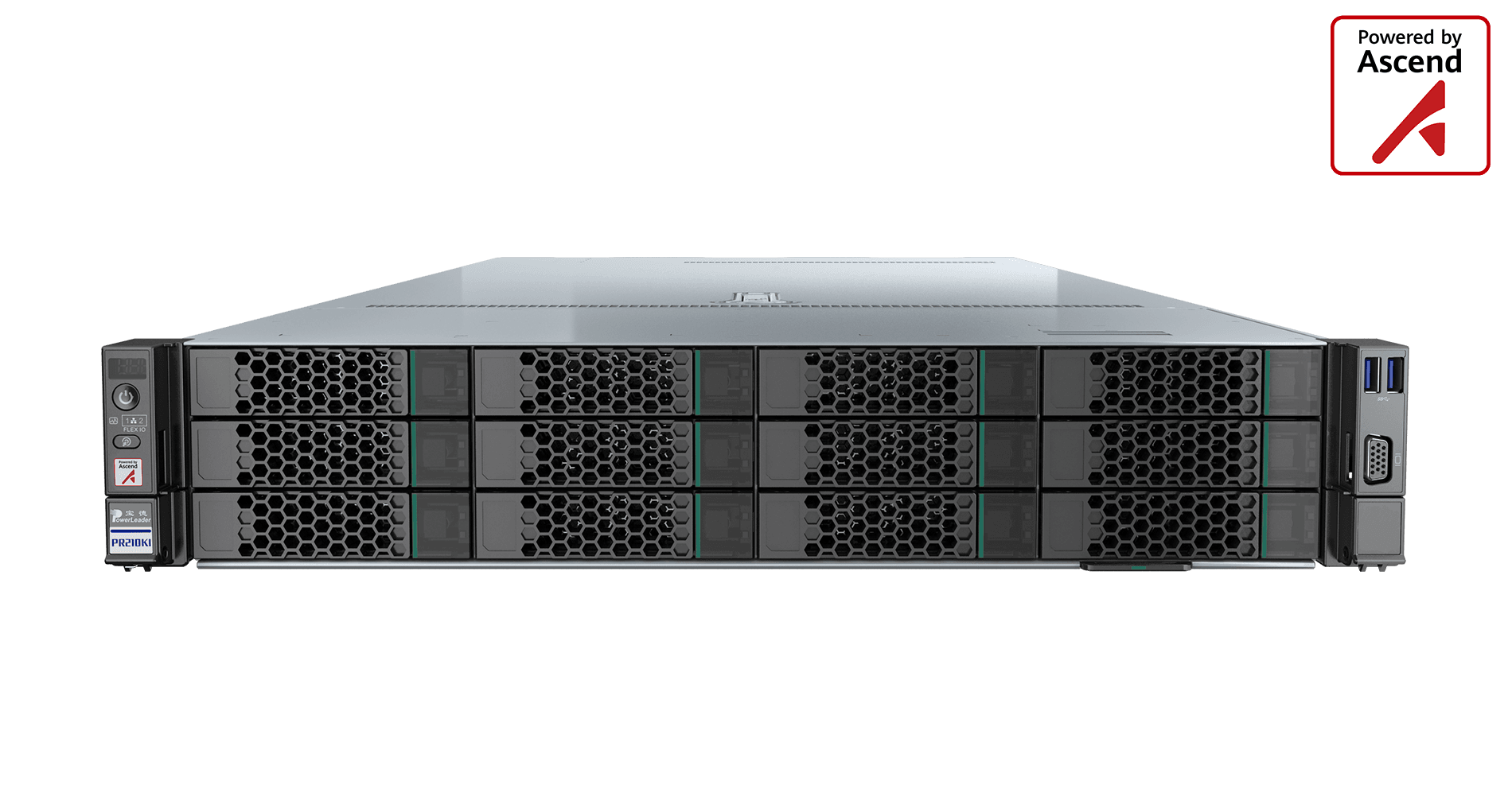

      PowerLeader ZiQiang PR210KI is a 2U rack-mounted server designed for information and communication technology (ICT) innovation, based on the domestic Kunpeng 920 processor (2 x Kunpeng 920 with 24/32/48/64 cores; 2.6GHz). It supports up to 8 Atlas single-slot, half-height, half-length PCIe standard cards, providing powerful real-time inference capabilities and video analysis capabilities. It is widely used in central AI inference scenarios.

      Functional features
      High Performance

      Equipped with the Kunpeng 920 processor with supercomputing power, it can maximise the concurrent execution capability ofmulti-threaded applications and help users cope with heavier computingpressure;


      Super Computing Power

      PR210KI supports 8Atlas acceleration cards , providingreal-time analysis of 1024 channels of HD video (1080P 25FPS).


      Highly Reliable

      PR210KI provides data processing performance anddata protection functions, standard serial port, Web management interface andother rich configuration storage management methods.


      Highly Efficient and Environmentally Friendly

      Single card power consumption is only 72W, combinedwith the multi-core and highly efficient Kunpeng architecture, to build alow-power and high-energy-efficiency AI inference computing platform.


      Technical specifications

      Characteristic

      PR210KI Technical Specifications

      Form

      Standard 19’, 2U Rack

      CPU

      2 * Kunpeng 920

      Memory

      8-channel DDR memory RDIMM with ECC calibration

      Supports 32DIMM slots, up to 4096 GB memory capacity

      Accelerator Card

      Supports up to 8 Atlas 300I/V Pro inference cards or 8 Atlas 300I inference cards

      Supports 2 Atlas 300T Pro training cards

      Storage

      25 * 2.5 SAS/SATA

      12 * 3.5 SAS/SATA

      8 * 2.5 SAS/SATA + 12 * 2.5 NVMe

      RAID

      Support RAID 0,1,5,6,10,50,60, support super capacitor power-down protection

      Interface

      Front: 2 * USB3.0 ports, 1 * VGA port

      Rear:

      2 * USB3.0 ports, 4/8 * 1GE RJ45 port, 4 * 25/10GE SFP+ port

      1 * DB15 VGA port, 1 * RJ45 management serial port

      1 * RJ45 management network port

      PCI-E

      Supports up to 9 PCIe 4.0 slots, including 1 dedicated for RAID cards and 8 standard PCIe expansion slots

      PSUs

      Default configuration includes 2 x 900W AC power modules with 1+1 redundancy. Supports 2 x hot-swappable 900W or 2000W AC power modules, also with 1+1 redundancy

      OS

      Supports a variety of operating systems including SUSE, Ubuntu, CentOS, UOS, ZhongBiao Kylin,Galaxy Kylin, Ningsi, Taishan Guoxin, Puhua, Hunan Kylin



      Service and Support

      PowerLeader provides nationwide joint warranty, and PowerLeader 's professional after-sales service outlets across the country provide "one-stop" service response and support.

      - 3-year limited on-site warranty and on-site support

      - 4008-870-872 hotline response and support

      For more information: please visit: http://en.jcw315.net/

      Correspondence address: 16th Floor, Building B, Building 7, Baoneng Technology Park, No. 1 Qingxiang Road, Longhua District, Shenzhen


      PowerLeader reserves the right to change product specifications or other product information (including but not limited to product weight, appearance, size or other physical factors) without notice; the information mentioned in this article may change due to product upgrades or other reasons. resulting in changes without prior notice. The product pictures involved in this article are subject to the actual product.
